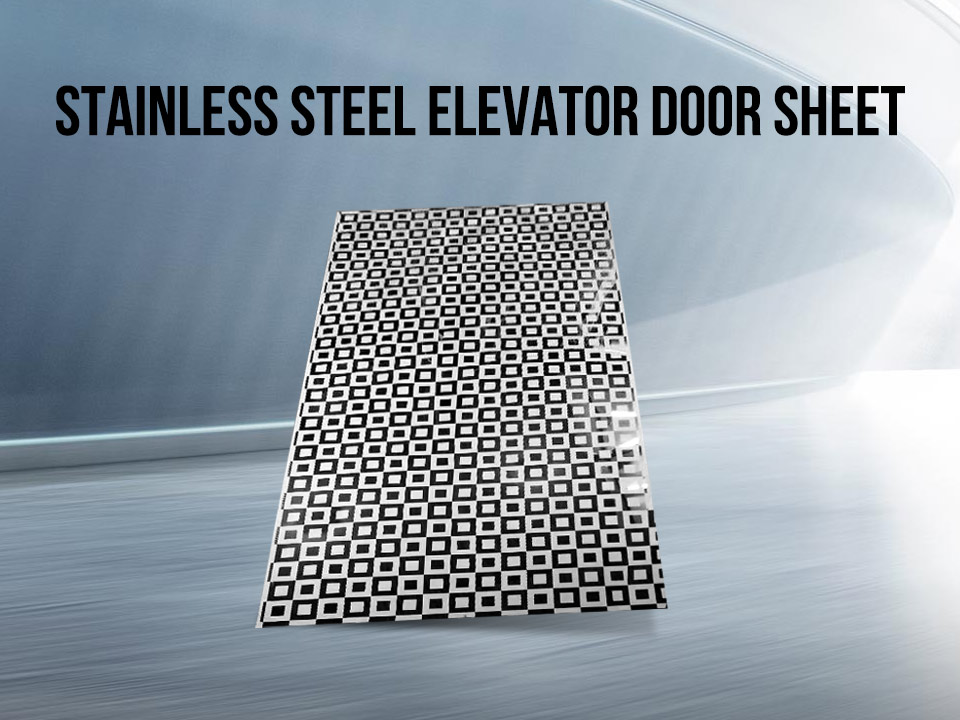

Etched Stainless Steel Sheet for Cabin and Doors

This etched stainless steel sheet  is made on the 8K stainless steel sheet,and the etched part and the mirror part form a unique pattern.Combined with the colors required by designers and manufacturers,a good elevator decoration effect can be achieved.

  • Grade: :

    201/304/316
  • Surface: :

    Etching Finish
  • Size: :

    1219*2438mm,1219*3048mm or customized
  • Color :

    Silver
  • Lead Time: :

    7-25 days after deposit
  • MOQ :

    50pcs

Etched Stainless Steel Sheet for Cabin and Doors

We have more than 300 kinds of etching molds for customers to choose.As long as it is the etching mold we have, there is no extra mold fee.

If the customer needs a customized etching pattern,we can make a corresponding etching mold, and then manufacture the desired pattern.



Elevator Stainless Steel Sheet



Name Etched Stainless Steel Sheet for Cabin and Doors
Material Grade Stainless Steel 201/304/316
Thickness 0.5-3.0mm
Size 1000*2000mm 1219*2240mm,1219*2438mm,1500*3000mm
Color Gold,Rose Gold,Bronze,Black,Champagne,White Gold,Brass,Etc
MOQ 30pcs
Packing PVC+ waterproof paper + strong sea-worthy wooden package
Payment Term T/T, L/C at sight



Chemical composition and mechanical properties of stainless steel coils

Grade

Chemical Composition (%)

Mechanieal Performece

C

Si

Mn

P

S

Ni

Cr

Mo

Hardness

201

≤0.15

≤1.00

5.5/7.5

≤0.060

≤0.030

3.5/5.5

16.0/18.0

-

HB≤241,HRB≤100, HV≤240

304

≤0.08

≤1.00

≤2.00

≤0.045

≤0.03

8.0/11.0

18.00/20.00

-

HB≤187,HRB≤90,HV≤200

316

≤0.08

≤1.00

≤2.00

≤0.045

≤0.03

10.00/14.00

16.0/18.0

2.00/3.00

HB≤187, HRB≤90 HV≤200

316L

≤0.03

≤1.00

≤2.00

≤0.045

≤0.03

10.00/14.00

16.0/18.0

2.00/3.00

HB≤187, HRB≤90 HV≤200

410

≤0.15

≤1.00

≤1.25

≤0.060

≤0.030

≤0.060

11.5/13.5

-

HB≤183, HRB≤88 HV≤200

430

≤0.12

≤1.00

≤1.25

≤0.040

≤0.03

-

16.00/18.00

-

HB≤183, HRB≤88 HV≤200



Stainless Steel Elevator Doors



Elevator Stainless Steel Sheet etched patterns are created by selectively coating polished or brushed surfaces with an acid-resistant protective film and acid-etching the unprotected areas. The acid-resistant protective film can be pasted by hand-painting, silk screen printing or other methods. Improper etching can weaken the protective film and cause rough edges. Etching removes a thin layer of stainless steel, changing the color to a dull silvery gray and roughening the surface to create the desired pattern. The etched pattern can be left as is or made more reflective, and both custom and stock patterns are available.



4'x8' Stainless Steel Sheet



The Stainless Steel Elevator Doors etched finish is chemically etched on the surface of stainless steel to produce various required patterns.The pre-prcess sheet can be 8K mirror finish,hairline finish and sandblasting finish.After etching,the etching sheet surface can be further processed.Stainless steel etched sheets can be used for complex processes such as partial processing,brush,color coating,and partial titanium plating.The stainless steel etched sheet is light and dark patterns and brilliant colors.



Stainless Steel Elevator



Stainless Steel Appliances

Etched stainless steel sheets have different patterns and colors,and can be customized,which enriches the choices of Stainless Steel Elevator decoration.Because of the characteristics of stainless steel,it can be corrosion-resistant and high-strength.It has a long service life when used on elevators,is easy to maintain,and reduces the cost of use.Moreover,stainless steel is easy to process,and can be bent and welded into different sizes and shapes,which is convenient for the production of Stainless Steel Elevator Cabin.



Stainless Steel Elevator Cabin



Characteristics of Chemical Stainless Steel Etching Stainless Steel Etching Technology



1.There is no need for tools such as electrodes,masters, etc.,so there is no maintenance fee for these tools.

2.The time required from planning to production is short and can be used for short-term processing.

3.The physical and mechanical properties of the material are not affected by processing.

4.The Processing is not restricted by shape,area and weight.The processing is not limited by hardness and brittleness.

5.All metals (iron, stainless steel, aluminum alloys,copper alloys,nickel alloys,titanium.

6.Can be processed with high precision.The complicated,irregular and discontinuous design and processing can be implemented.

7.When the area is large,the processing efficiency is good like 4'x8' Stainless Steel Sheet,but when the area is small,the efficiency is worse than that of mechanical processing.

8.It is easy to obtain high precision in horizontal cutting,but it is difficult to obtain the precision of machining on the same machine in the depth and vertical directions.



Stainless Steel Etching Techniques



FAQ:

1. How to get quotation?

Confirm the stainless steel grade 201/304/316/43.

The stainless steel sheet size,standard size is 1219*2438mm

The thickness 03-3.0mm

The quantity

The surface finish and color.

Better let us know what is the usage.

Then we can know quote best price for you.



2. What is the Minimal Order Quantity(MOQ)?

Usually our MOQ is 50pcs.If have special request,we can check the quantity together.



3. Can you OEM or ODM?

Yes we can.We can make stainless steel sheet following you sample.And make right package for you.



4. What is your lead time?

7 Days for sample.

25-30 Days for bulk production.
